Brand Name : CHUNKE
Model Number : CK-SW
Certification : CE ISO
Place of Origin : China
MOQ : 1 Set
Price : Negotiate
Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 100 units per month
Delivery Time : 7-15days
Packaging Details : Wooden or carton
Name : FRP Sea Water Machine PVC Precision Filter Seawater Treatment Desalination Equipment
Material : FRP
water product : 0.5T-100T
Power : 220V/380V
Pump option : CNP, Grundfos
Valve option : Manual, automatic
FRP Sea Water Machine PVC Precision Filter Seawater Treatment Desalination Equipment
Seawater Treatment Desalination
Reverse osmosis technology is a modern high technology developed recently in China. Reverse osmosisis to seperate water from solution after it permeates the specially-made semi-transparent membrance through exerting a pressure that is higher than the osmosis pressure on the solution.
According to different osmosis pressures of various materials the process of reverse osmosis with a pressure higher than the osmosis pressure can be used to reach the purposes of separation, extraction, purification and concentration of a certain solution. It does not saves more energy than traditional process.
Equipment Typical process flow:
Raw water →raw water supply pump→ sand filter→ carbon filter→ softener filter→cartridge/security filter→high-pressure pump→ reverse osmosis host→ pure water tank
Design basis and treated water standard:
Raw water | Raw water quality analysis report( Better provide this to manufacture) |
Raw water | Underground water |
Produced water's application | Manufacture agrochemical |
The capacity of produced water | 250LPH,500L/H,1000LPH,2000LPH,3000LPH,5000LPH |
System Configuration | Pre-treatment + One Stage RO Water Purification System +Post Treatment |
Designed Recovery | 65% |
Rejection rate | ≥ 97% |
Operation time up to 12hours per day and 350days per year | |
Installation condition:Interior systems installation | Temperature:5-45℃ |
Voltage | 3 phases ,380v/220v,50Hz |
Effluent standards | Feed water conductivity ≤500μs/cm, water conductivity≤10μs/cm (desalting rate is 98-99.8%) |

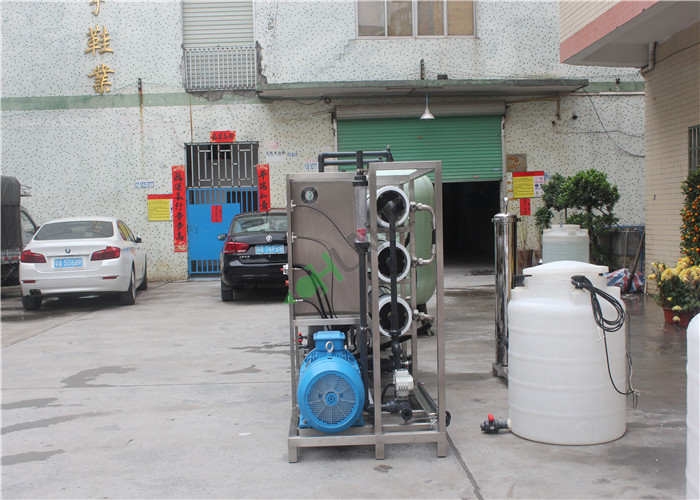

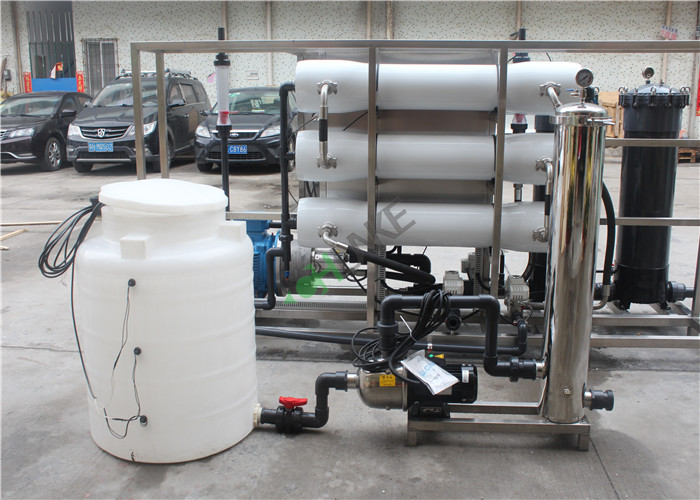

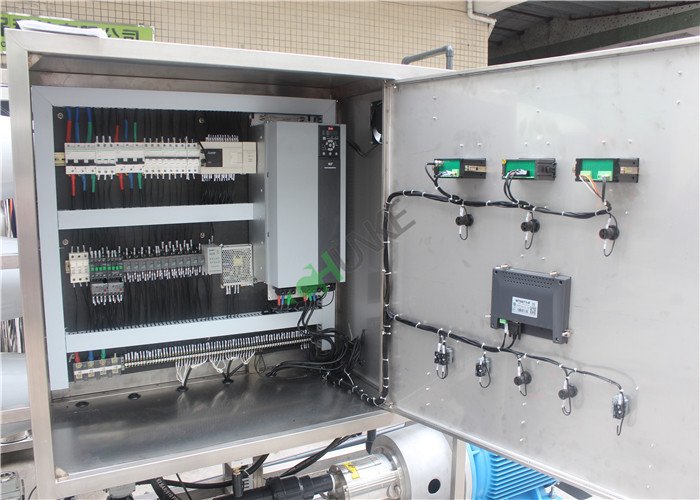

Seawater Treatment Desalination Equipment More picture:
![]() |
FRP Seawater Desalination Equipment Sea Water Machine PVC Precision Filter Images |
